Name: Import single axis photovoltaic tracking system from Chinese factory + Photovoltaic panel self-cleaning system
Brand: Boyue Photovoltaic Technology Co., Ltd.
SKU: Boyue PZ series
Price: 0.11 USD
Availability: InStock

Maison > produits > Système de support de panneau solaire >

Import single axis photovoltaic tracking system from Chinese factory + Photovoltaic panel self-cleaning system

Place of Origin:

Langfang, Hebei, China

Nom de marque:

BoYue Photovoltaic

Certification:

ISO-9001

Model Number:

Boyue PZ series

Contactez-nous

Demandez une citation

Détails de produit

Place of Origin:

langfang，hebei，china

Photovoltaic tracking bracket:

single row flat single axis

Tracking range:

±60°

Driver:

multi-point linear push rod

Standard configuration:

2 rows of vertical installation (2P module long side perpendicular to the main beam) up to 4 strings per bracket

Compatible modules:

Framed modules

Optional foundation type:

direct tamping {column foundation integrated type} pre-drilled/microporous concrete pouring/PHC pipe pile

Column section::

W-type, compatible with IPE, IPEA

Module fixing method:

bolts, rivets, pressure blocks

Nom de marque:

Boyue Photovoltaic

Snow Load:

1.4kn/m2

Control algorithm:

Astronomical algorithm + closed loop(AI Control)

Drive System:

slewing drive

Tracking Accuracy:

<1°

Driving Power:

150w

Warranty:

Structure 10 years, electrical warranty 5 years

Conditions de paiement et d'expédition

Minimum Order Quantity

1 pcs

Prix

0.11USD/W

Packaging Details

Plastic film

Delivery Time

5 days -7 days.

Payment Terms

L/C, T/T

PRODUITS CONNEXES

Appareil photovoltaïque à traçage à axe unique

Obtenez le meilleur prix

Vidéo

Montage au sol du panneau solaire en alliage d'aluminium réglable pour le sol irrégulier

Obtenez le meilleur prix

Vidéo

Système de montage de panneau solaire sur le toit à forte charge de neige Angle d'inclinaison de 0 à 60 degrés

Obtenez le meilleur prix

Vidéo

Système de montage de panneau solaire vis de terre fondation en béton montage conceptions personnalisées

Obtenez le meilleur prix

Contactez-nous

86-159-3061-9958

sales@boyuesolar.com

Contact maintenant

Description de produit

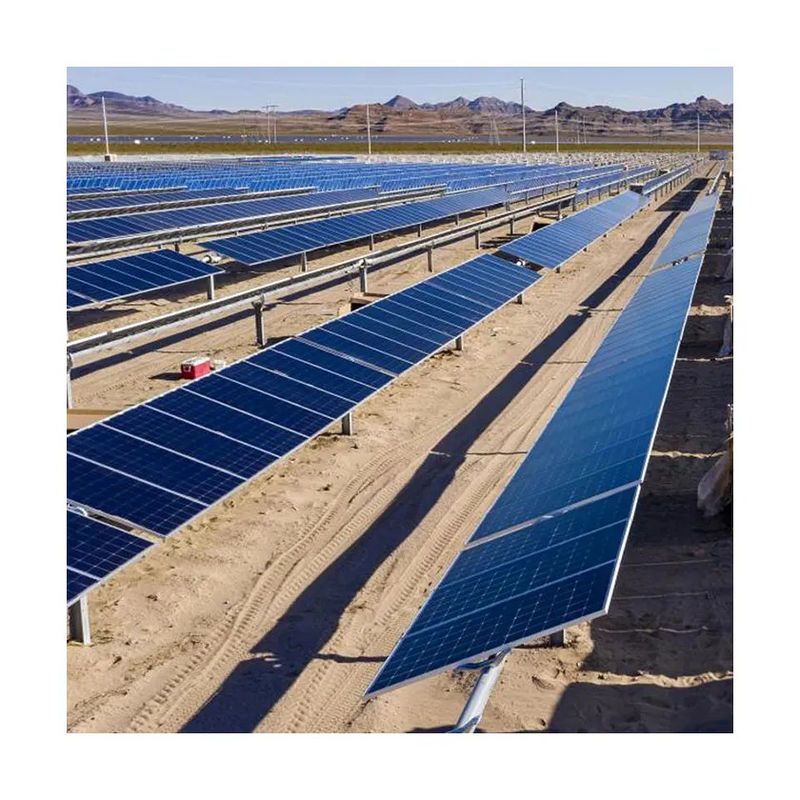

What is a flat single-axis solar tracking bracket?

A flat single-axis solar tracking bracket is a mounting system that rotates solar panels along one horizontal axis (parallel to the ground) to follow the sun’s daily east-west path. This maximizes sunlight exposure, significantly boosting energy generation.

Performance data reveals these systems deliver 20–30% higher power output than fixed-tilt installations. Their efficiency is latitude-dependent: regions below 30° latitude achieve the most substantial gains, making them ideal for low-latitude deployment. Import single axis photovoltaic tracking system from Chinese factory + Photovoltaic panel self-cleaning system 0

Import single axis photovoltaic tracking system from Chinese factory + Photovoltaic panel self-cleaning system 1

General parameters

Photovoltaic tracking bracket: single row flat single axis
Tracking range: ±60°
Driver: multi-point linear actuator
Standard configuration: 2 rows of vertical installation (2P module long side perpendicular to the main beam) up to 4 strings per bracket
Compatible modules: Framed modules
Optional foundation type: direct tamping (column foundation integrated} pre-drilled/microporous concrete pouring/PHC pipe pile
Column section: W-type, compatible with IPE, IPEA
Module fixing method: bolts, rivets, blocks
Number of columns per MW: [550WD module] -106 columns/MW (120 modules per bracket)
[670Wp module] -102 columns/MVV (102 modules per bracket)
Allowable wind load and snow load: Designed according to project requirements
Back shadow shielding coefficient: 0.8%
Maximum wind speed: 42m/s
Terrain adaptability north-south slope: ≤15%

Structure

Material: high-strength steel material
Coating: hot-dip galvanizing HDG, pre-galvanized and magnesium-aluminum-zinc
Electrical control specification
Controller: Controller with microprocessor
Protection level: IP65
Tracking method: Astronomical algorithm + Zhihe intelligent tracking technology
Advanced wind speed control system: Intelligent gust alarm
Wind speed sensor: Three-cup type/ultrasonic type
Nighttime stillness: optional
Communication method: Wired mode: RS485
Wireless mode: LoRa/Zigbee
Adaptive environment: Altitude: <4000 meters
Temperature: 30℃ to 60℃*
Sensor: High-precision angle sensor
Motor model: DC motor: 0.2kW
Power supply form: Grid power/string power/solar panel self-powered

Support

High wind protection, night return mode
Heavy rain cleaning mode
Snow removal mode

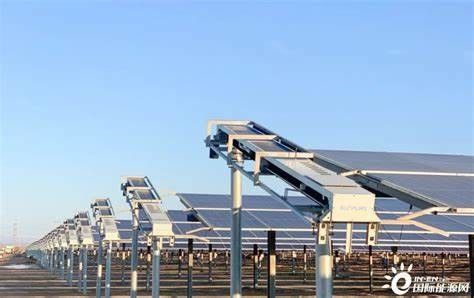

Automatic cleaning robot
